Buckeye Additional Attachments for Buckeystargazer Brackets

Name: Buckeye Additional Attachments Brackets for Buckeye Stargazer
Brand: Buckeye Stargazer
SKU: ilb1787937724274
Price: 9.87 USD
Availability: InStock

Buckeyestargazer brackets for Pegasus Powerboxes, MiniPCs, and focuser controllers use various attachments for mounting on several different dovetail bars, finder shoes or tripod legs. Each of the above listed brackets comes with one attachment included.

On this page you can order additional attachments. For example, if you bought a PPBA-Bracket + VSaddle attachment, but you now have Losmandy style dovetail bars, you can order an additional LSaddle without buying the PPBA-Bracket again.

Technical Specifications

Rail/Dovetail Attachments

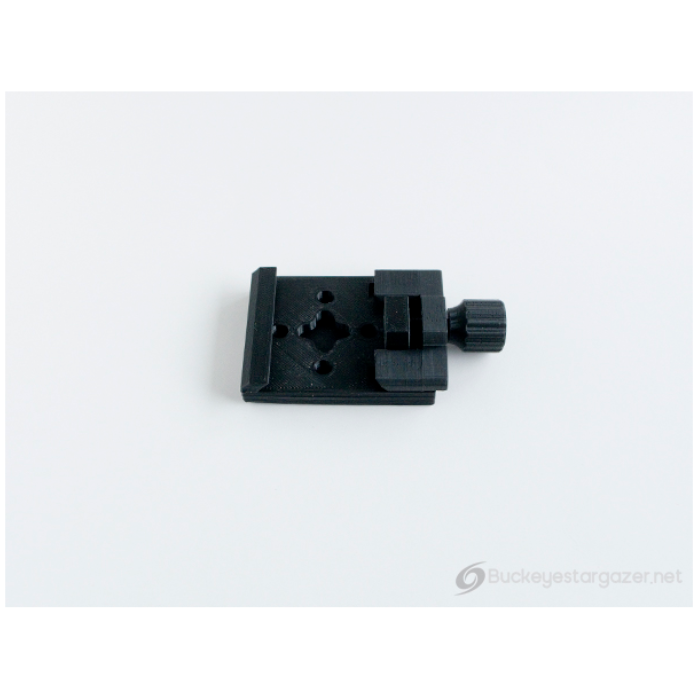

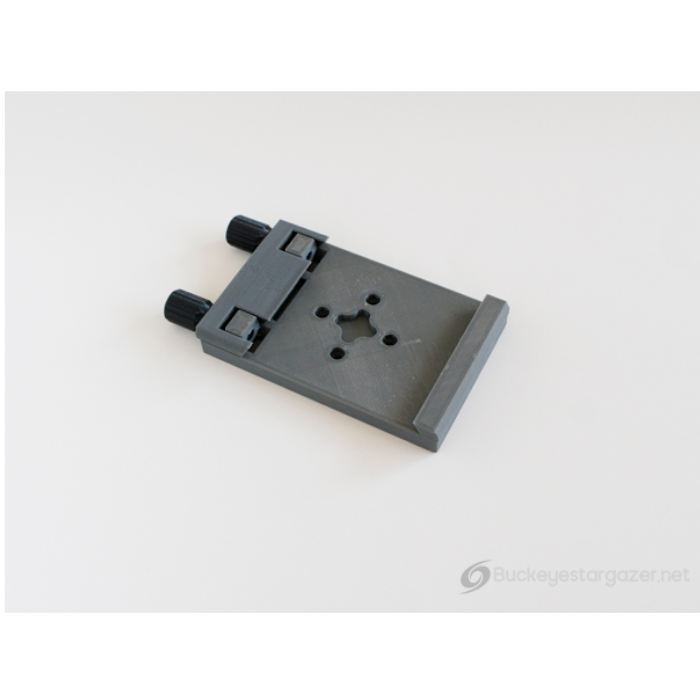

LSaddle: Losmandy saddle that allows mounting to Losmandy/"D" rails

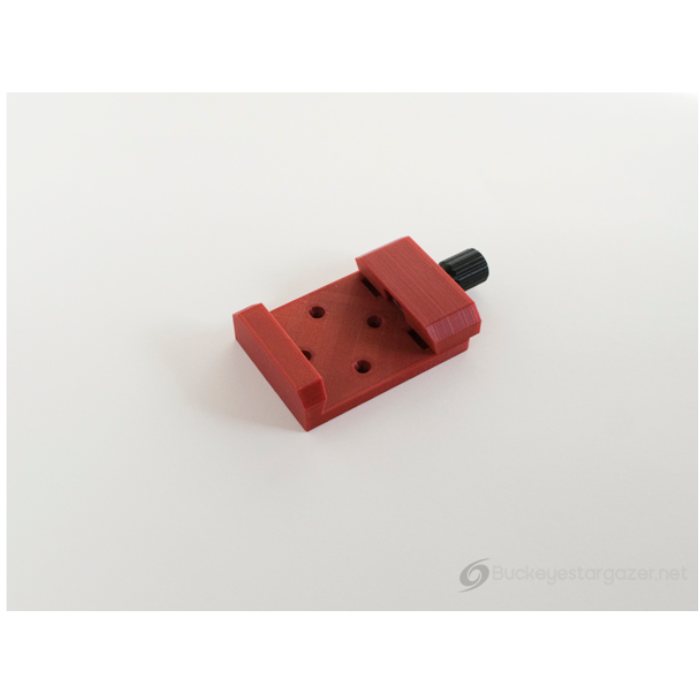

VSaddle: V-type saddle that allows mounting to a V-bar/rail

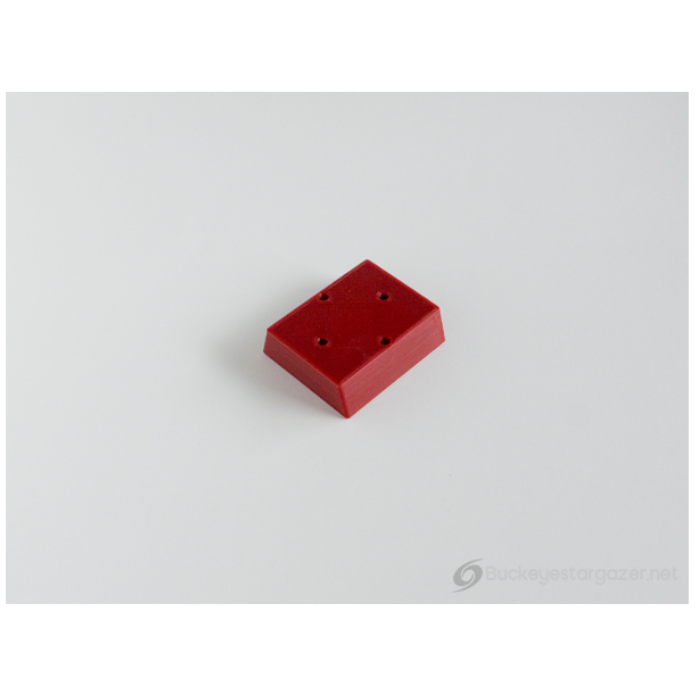

VBar: V-type bar that slips into a V-type clamp
ADM-MDS-Saddle: ADM MDS saddle that clamps to a MDS style bar
ArcaSwiss-Saddle: Arca-Swiss saddle that allows for mounting to an Arca-Swiss rail
ArcaSwiss-Bar: Arca-Swiss bar that slips into an Arca-Swiss clamp

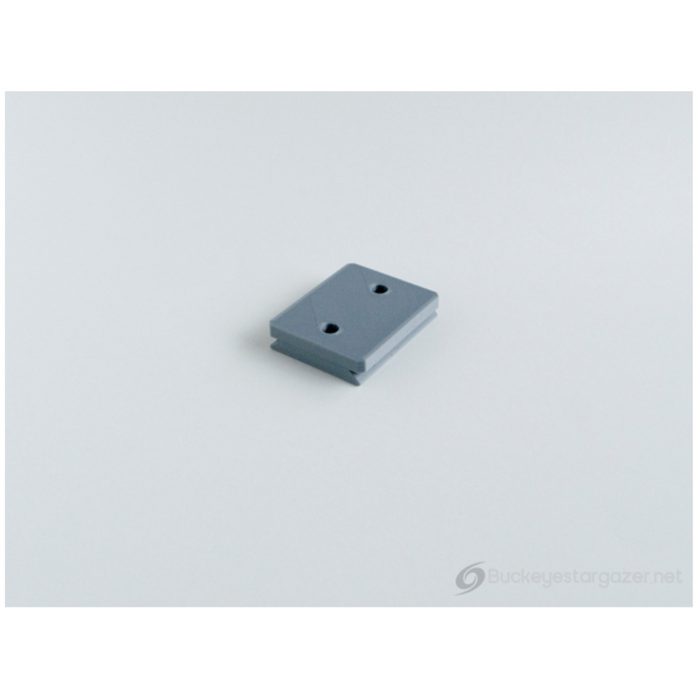

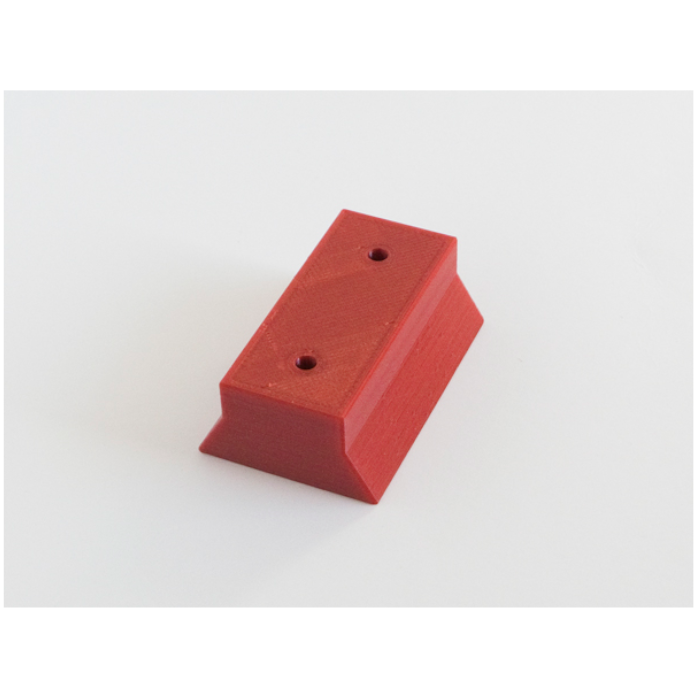

Synta-Bar-20mm: Synta/Vixen bar that slips into a Synta finder base, 20mm tall
Synta-Bar-50mm: Synta/Vixen bar that slips into a Synta finder base, 50mm tall

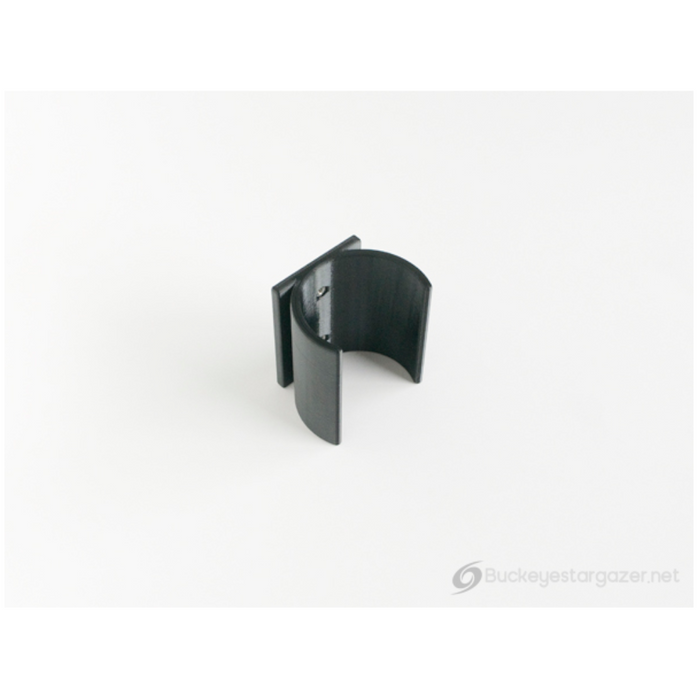

Round Leg Tripod Attachments

Tripod-1.00: 1.00" diameter legs
Tripod-1.20: 1.20" legs (Skywatcher AZ-GT, A25, StarAdventure, SolarQuest)
Tripod-1.25: 1.25" legs (iOptron SmartStar, iPano, SkyGuider Pro, SkyTracker, SmartEQ/Cube)
Tripod-1.50: 1.50" / 40mm legs (ZWO TC40, iOptron ZEQ25, CEM25, MiniTower, iEQ30, SkyGuide)
Tripod-1.75: 1.75" legs (iOptron LiteRoc; Sky-Watcher AZ-EQ5/EQM-35/HEQ5)
Tripod-2.00: 2.00" legs (Skywatcher AZ EQ6, EQ6-RPro; iOptron MiniTower-Pro, iEQ45/CEM60; Meade Standard Field Tripod; Celestron Heavy Duty Tripod, AVX Tripod, CGX Tripod)
Tripod-2.36: 2.36" legs (Skywatcher EQ8)
Tripod-2.75: 2.75" legs (Celestron CGX-L)
Tripod-3.00: 3.00" legs (Meade Giant Field Tripod; Losmandy HD Tripod)

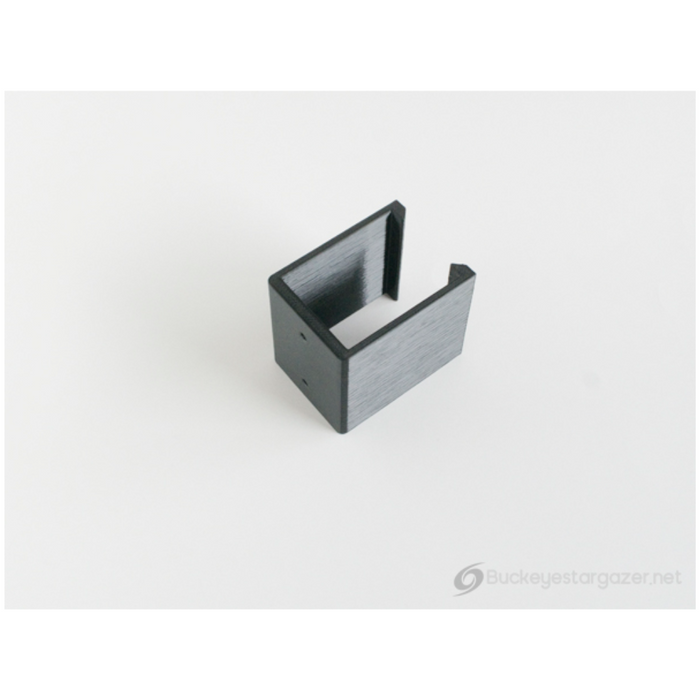

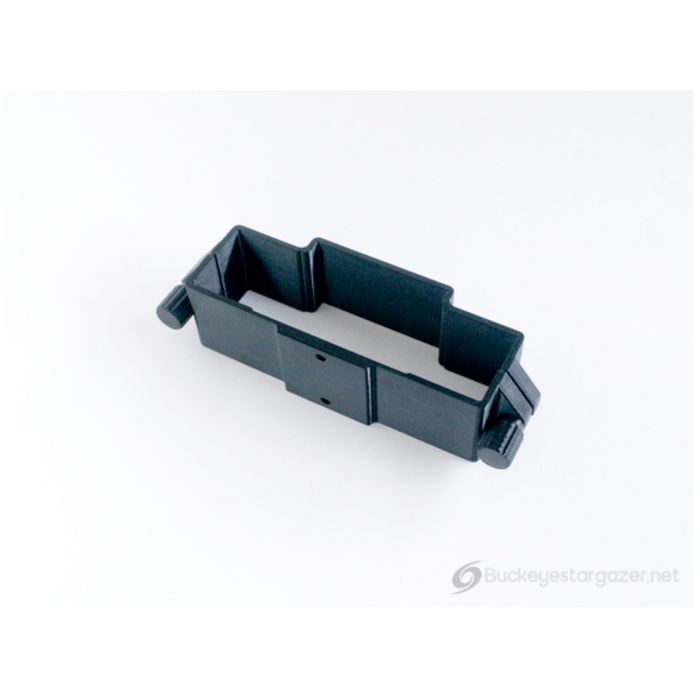

Other Tripod/Pier Attachments

Tripod-TriPier: iOptron Tri-Pier (NOTE: this will NOT fit the Tri-Pier 360)
Tripod-LosLW-v1: Losmandy LW Tripod (Pre-2011)
Tripod-LosLW-v2: Losmandy LW Tripod (2011 and later)
Pier-APEagle: Astro-Physics Eagle Pier
